品牌:柯铭防爆

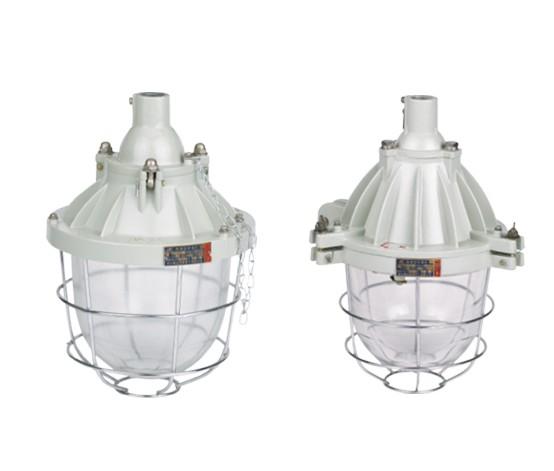

BAD50系列隔爆型防爆灯
适用范围：
1. 适用于1区、2区危险场所；
2. 适用于IIA、IIB类，温度组别为T1-T4的危险性气体环境；
技术参数：
1. 执行标准：GB3836-2000 IEC60079
2. 防爆标志：ExdIIBT4
3. 额定电压：AC220V/50HZ
4. 防护等级：IP54
5. 防腐等级：WF1
6. 灯座规格：E27
7. 引入口规格：G3/4”
8. 电缆规格：Ф9mm-Ф14mm
产品特点：
1. 壳体采用铝合金压铸成型，表面高压静电喷塑；
2. 钢化玻璃灯罩，不锈钢外露紧固件，防护网采用镀锌后表面浸塑；
3. 采用活接螺栓紧固，能快速开启，便于安装于维护；
4. 钢管布线；
BAD50 series flameproof explosion-proof lamp Applicable scope: 1. Suitable for district 1, 2 division dangerous places, 2. Suitable for type IIA, IIB classes, temperature classes for T1 - T4 risk of gas environment; Technical parameters: 1.the implement standard: GB3836-2000 IEC60079 2. Explosion-proof marks: ExdIIBT4 3. The rated voltage: AC220V / 50HZ 4. Protection grade: IP54 5. The anti-corrosion class: WF1 Six, lamp holder specification: E27 7. Introduce mouth specification: G3 1/4" 8. Cable specification: Ф 9mm - Ф 14mm Product features: 1. Shell using aluminum alloy high-pressure electrostatic plastic-sprayed surface,
