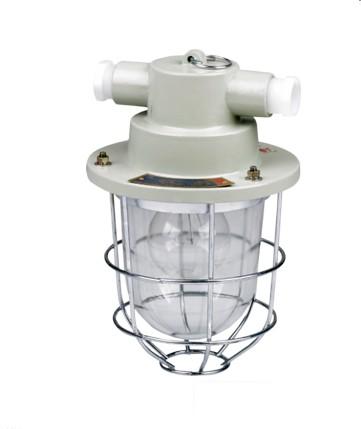

ABP/KBB安全型防爆白炽灯图1

ABP/KBB安全型防爆白炽灯

2012-02-09 09:520询价
价格:¥0.00/套
品牌:柯铭防爆
起订:1套



ABP系列安全型防爆白炽灯
适用范围:
1.     适用于1区、2区危险场所;
2.     适用于IIA、IIB、IIC类,温度组别为T1-T3的危险性气体环境!
技术参数:
1.     执行标准:GB3836-2000  IEC60079
2.     防爆标志:ExeIIT3
3.     额定电压:AC220V/50HZ
4.     防护等级:IP54;
5.     防腐等级:WF1
6.     灯座规格:E27
7.     进线口规格:2-G3/4”
8.     电缆规格:Ф9mm-Ф14mm
产品特点:
1.     壳体采用铝合金压铸成型,表面高压静电喷塑,
2.     钢化玻璃罩,不锈钢外露紧固件,防护网采用镀锌后表面浸塑;
3.     壳体上配有挂钩,方便用户悬挂;
4.     壳体上有两引入装置,电缆布线;


ABP series safe explosion proof incandescent lamp Applicable scope: 1. Suitable for district 1, 2 division dangerous places, 2. Suitable for type IIA, IIB IIC classes, and temperature classes for T1 - T3 risk of gas environment! Technical parameters: 1.the implement standard: GB3836-2000 IEC60079 2. Explosion-proof marks: ExeIIT3 3. The rated voltage: AC220V / 50HZ 4. Protection grade: IP54; 5. The anti-corrosion class: WF1 Six, lamp holder specification: E27 7. The inlet specification: 2 - G3 1/4" 8. Cable specification: Ф 9mm - Ф 14mm Product features: 1. Shell using aluminum alloy high-pressure electrostatic plastic-sprayed surface, Toughened glass, stainless steel 2 outliers fasteners, defend the net after use galvanized surface jinsu; 3. Shell has hook, user-friendly suspension, 4. Shell, there were two cable; introducing device,
