品牌:AOSI
间距:5.0mm
额定电压:300[V]
额定电流:10[A]
发货:3天内

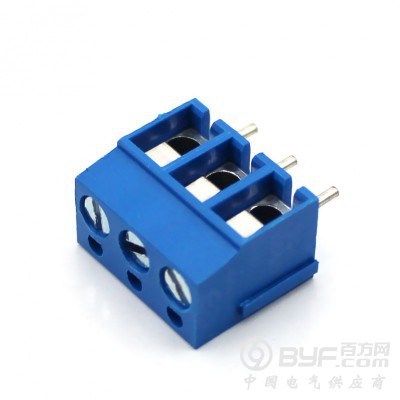

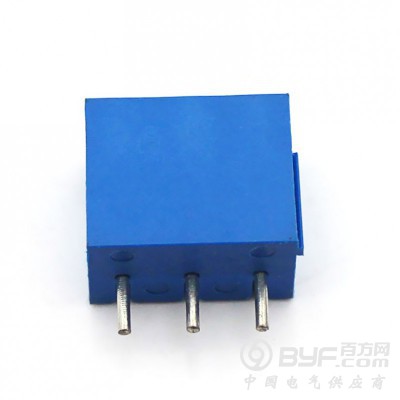

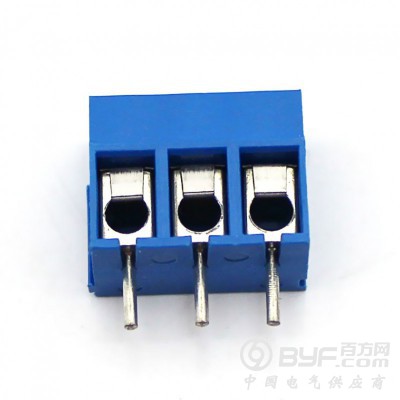

弹片式 F116-5.0/DG300V 5.0mm间距 螺钉式PCB接线端子

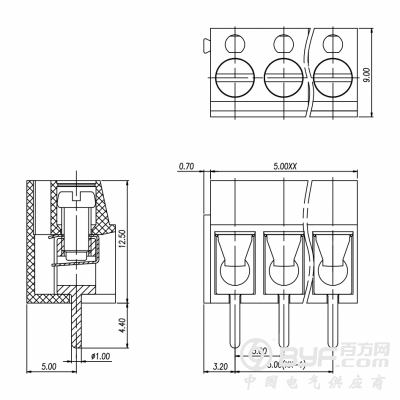

产品间距(Pitch) 5.0[mm]
极数(Poles) 02-24P
额定电压(Rated voltage) 300[V]
额定电流(Rated current) 10[A]
工频耐压(Withstanding Voltage) 2.0[KV/min]
螺丝(Screw) M3
阻燃等级(Inflammability class)UL94 /V-0
接线方法 (Wire connecting)
推荐剥线长度5-6mm; Recommended stripping length 5-6mm;
1.）单股硬导线，剥好对应长度的导线后，用额定的扭力拧紧；
For solid wire, stripping wire to the appointed length, then tightening with rated torque.
2.）多股柔性导线，剥好对应长度的导线后，可以直接连接或者配套使用对应标准规格的冷压端头，用额定的扭力拧紧；
For stranded wire: stripping wire to the appointed length, mating with corresponding type of ferrule, then tightening with rated torque.
注意事项：扭力要平稳，不能使用爆发力；( Tightening process should be steady, can’t use explosive force.)
