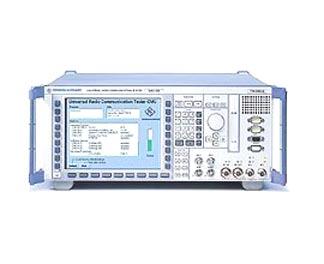

CMU200专业租赁135100 93001

深圳市科必佳电子仪器有限公司是CMU200租赁的优质供应商, 我们向国内外客户常年供应CMU200及其相关产品，欢迎广大客户前来采购和洽谈生意。
科必佳专业租赁德国R/S CMU200，销售德国R/S CMU200配置齐全欢迎来电咨询！

☆ GPRS
☆ EDGE
☆ GSM
☆ Bluetooth
☆ TDMA (IS-136)
☆ AMPS
☆ WCDMA / HSDPA
☆ CDMA2000

Applications coming soon:

WCDMA signalling
CDMA2000 1xEV-DO

Application independent test functionalities

☆ Audio measurements
☆ IQ/IF Interface (R&S CMU-B17) allows measurements under fading conditions
☆ Audio generatoranalyzer (R&S CMU-B41) available for comprehensive audio measurements
☆ Spectrum analyzer
☆ Power versus time measurement
☆ RF generator/analyzer

option

Type R&S
Option R&S  GSM/GPRS/
EDGE/HSCSD  TDMA  AMPS  cdma2000  WCDMA  Bluetooth  Order Number

CMU 200
Base unit with following accessories: power cord, operating manual, service manual for instrument  +  +  +  +  +  +  1100.0008.02
CMU-B11 1)
Reference OCXO, aging 2x10 -7 /year; ensures high absolute accuracy, minimum temperature-dependent driftespecially high long-term stability; used for measurements with exact frequency stability requirements  o  o  o  o  o  o  1100.5000.02
CMU-B12 1)
High-stability OCXO, aging 3.5x10 -8 /year. Oven crystal with highest long-term stability; ensures compliance with tolerances specified by GSM; used for highly demanding frequency stability requirements to GSM 11.20  o  o  o  o  o  o  1100.5100.02
CMU-B17
Analog I/Q IF interface  o  o  -  o  o  -  1100.6906.02
CMU-B21
Versatile signalling unit; provides multistandard signalling hardware; required for WCDMA 3GPP FDD  +  +  +  -  +  +  1100.5200.14
CMU-B41
Audio generatoranalyzer; includes audio frequency (AF) generator, voltmeter, distortion meter  o  o  +  o  o  o  1100.5300.02
CMU-B52
Internal versatile multimode speech coder/decoder; R&S CMU-B21 necessary  o  o  -  -  o  o  1100.5400.14
CMU-B53
Bluetooth extension; R&S CMU-B21 necessary  -  -  -  -  -  +  1100.5700.14
CMU-B54
Signalling module for AMPS, TDMA, GSM/GPRS/EGPRS; R&S CMU-B21 necessary  +  +  +  -  -  -  1150.2604.14
CMU-B56
WCDMA (3GPP FDD) signalling module; R&S CMU-B21 necessary  -  -  -  -  +  -  1150.1850.14
CMU-B66 2)
Versatile baseband board for WCDMA (3GPP FDD) Layer 1, DL, non-signalling  -  -  -  -  +  -  1149.9509.02
CMU-B68 2)
Versatile baseband board for WCDMA (3GPP FDD) Layer 1, DLUL, non-signalling  -  -  -  -  +  -  1149.9809.02
CMU-B69
Option package WCDMA (3GPP/FDD) complete for band 1, signalling  -  -  -  -  +  -  1150.2304.02
CMU-B73
Analog telephone line interface  -  -  o  -  -  -  1150.2004.02
CMU-B83
cdma2000 1x signalling unit  -  -  -  +  -  -  1150.0301.12
CMU-B85
8k/13k QCELP, 8k EVRC speech codec for cdma2000 1x Signalling Unit R&S CMU-B83  -  -  -  o  -  -  1100.7002.12
CMU-B87
Message monitor for cdma2000 1x Signalling Unit R&S CMU-B83  -  -  -  o  -  -  1150.2404.02
CMU-B88
cdma2000 1xEV-DO (HDR) extension board for cdma2000 1x Signalling Unit R&S CMU-B83  -  -  -  o  -  -  1158.9908.02
CMU-B95
2nd TX RF channel; BCCH always present with GSM/GPRS/EGPRS  o  -  -  -  -  -  1159.0504.02
CMU-B99
RF1 level range identical to RF2  o  o  o  o  o  o  1150.1250.02
CMU-U65
3G measurement DSPperformance accelerator  -  -  -  +  +  -  1100.7402.02
