品牌:cxs
起订:2只

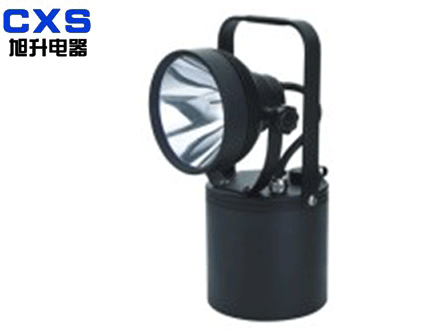

本公司为了满足部队、油田、矿井、石化、铁路、电力和钢铁等工矿企业室内外移动照明需要,研制开发生产的新一代防爆泛光工作灯,经国家权威机构防爆认证,可在各种易燃易爆场所安全工作.
In order to meet the demands for mobile lighting in the army,oil field,mine,petrochemical,railway and electiric power,etc;the updated explosion-proof lamp has been developed and approved by the related explosion proof authority,which can be used safely in all flammable and explosive fields.
二、性能特点：
- 安全性能: 已符合国家权威机构防爆标准,完全按照国家防爆标准生产.具有极佳的防爆、抗静电性能,突破
传统的灯头防爆,灯箱不防爆缺陷.可在各种易燃易爆场所命案工作. - 防水性能: 全密封性工艺设计,可置于水中正常工作,特制合金外壳确保产品能经受强力碰撞和冲击.
- 高效性能: 选用特殊气体放电光源,发光效率高,光通量为3200Lm,是同功率卤素灯泡的5倍;照度是100W卤素
灯泡的3倍;灯泡寿命长1000小时;是普通卤素灯泡的5-10倍;在相同亮度指标下,所消耗的电量是普通卤素灯泡的15%,而且防震效果好,发热量小,更加安全可靠. - 环保性能: 高能无记忆电池可随时充电,一次充足电后,放置一年储电量不低于满容量的80%;两年内不低于满容量的50%,并没有低压过放电保护电路,可靠的保护电池,延长电池使用寿命.
- 使用方便: 独特的灯头结构设计,照明角度可任意调节,灯箱装有轮子,方便移动,工作时简单、轻松.
- Security performance:It has been approved by the related explosion proof authority and manufactured by national explosion proof standards.It is well described of perfect explosion-proof and anti-static performance while has conquered the previous shortcomings that cap is explosion-proof but the lamp box is not in the traditional lamps.
- Water-proof performance:With sealed craft design it can work normally underwater.Additionally the alloy
enclosure stands the collision and the strike. - High efficiency:It adopts particular gas discharge light source with high efficiency;The luminous flux reaches 3200lm,5 times of the halogen bulb with the same power.Illuminance is 3 times of halogen bulb with 100W and bulb life reaches 1000 hours,5-10 times of the halogen bulb.The wasting electricity will be 15% of the halogen bulb on condition that same brightness,additionally,shockproof and low heat radiation and more reliable performance.
- Environment protection:The battery without memory can charge anytime.What's more,the electricity capacity of the battery cannot be less than 80% of the full ＆#118alue after charging in one year and not less than 50% in two years.Besides there is the protector to prolong the service life of the battery if the pressure is too low or the battery is discharging.
- Easy usage:With specially designed cap,the light andle can be changed anywhere,the wheel on the
lamp box helps move freely,which is more convenient.
三、主要技术参数 Main technical parame
1、额定电压：24V 1、Rated voltage:24V
2、额定容量：20Ah 2、Rated capacity:20Ah
3、特制灯泡 3、Light:
工作电压：24V Working voltage:24V
额定功率：35W Rated power:35W
光通量:3200lmm Luminous flux:3200lm
平均使用寿命:10000h Average service life:10000h
4、连续放电时间：>10 h 4、Continuous discharging time:>10h
5、充电时间： 5、Charging time:
正常使用后:12h Use normally:12h
电池耗尽后：≥16h Battery exhaust:≥16h
6、电池使用寿命:约r500次循环 6、The service life of battery:about 1000 cycles
7、外形尺寸:长x宽x高:300x248x715mm 7、Outline dimensions:lengthxwidthxheight:300x248x715mm
8、重量:15Kg 8、Weitht:15Kg
四、品质保证 Guarantee of quality
本产品实行3年保用,灯泡保用一年,自购买之日起三年内,产品正常使用下出现任何故障由本公司免费
维修.适用范围:1、2区
防爆标志:Exd II Ct6
外壳防护等级:IP65
The quality guarantee of this product is 3 years,during which,any fault occurs under normal
operation condition,we take the responsibility of the maintenance for free.The bulb is 1 year.
Applicable scope:Zone 1 and Zone 2
Ex-mark:Exd II Ct6
Degree of protection of enclosure:IP65
